Getting Started

Pairk is a Python package designed to quantify the conservation of short motifs in disordered regions, where traditional multiple sequence alignments (MSAs) are difficult. It takes a sequence of interest (the query) and a set of homologous sequences as input and quantifies the conservation of the query sequence without using an MSA. Pairk is designed to be simple to use and easy to install.

See our manuscript for more details on the method: <coming soon>

to install

pip install pairk

or for an editable install that you can modify:

git clone https://github.com/jacksonh1/pairk.git
cd pairk
pip install -e .

Pairk Overview

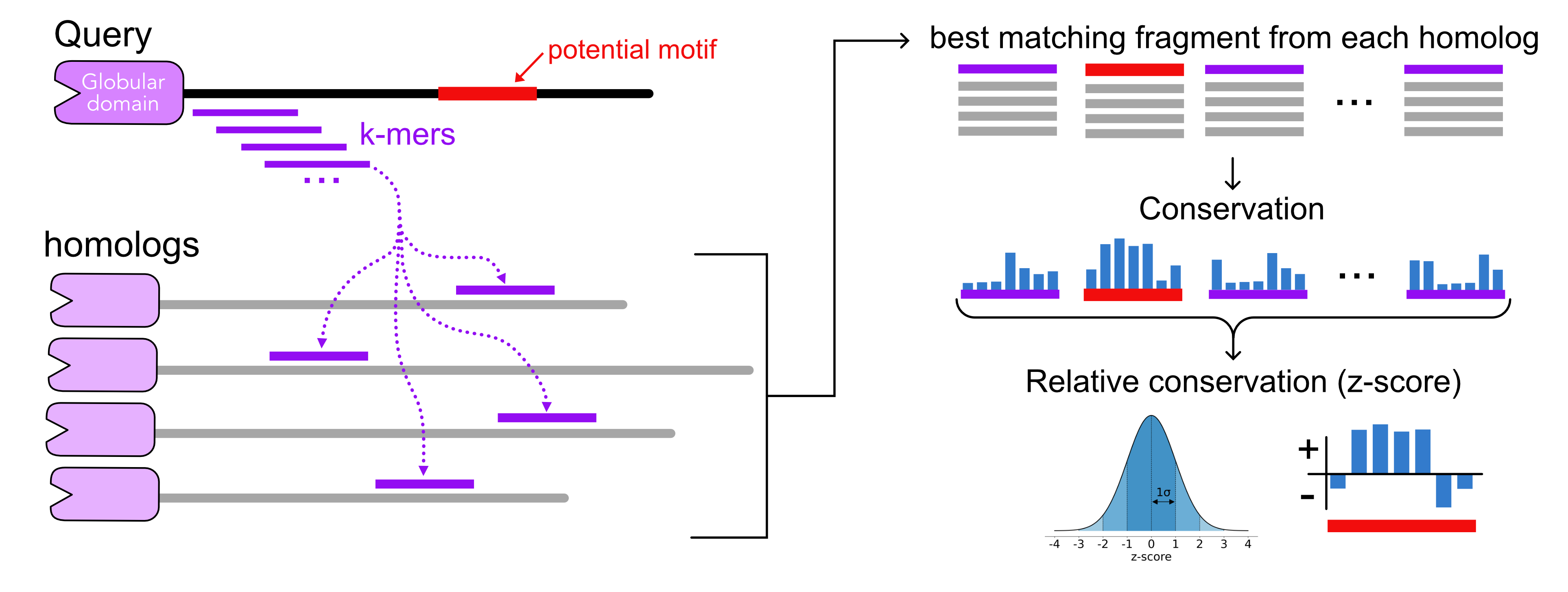

The pairk pipeline:

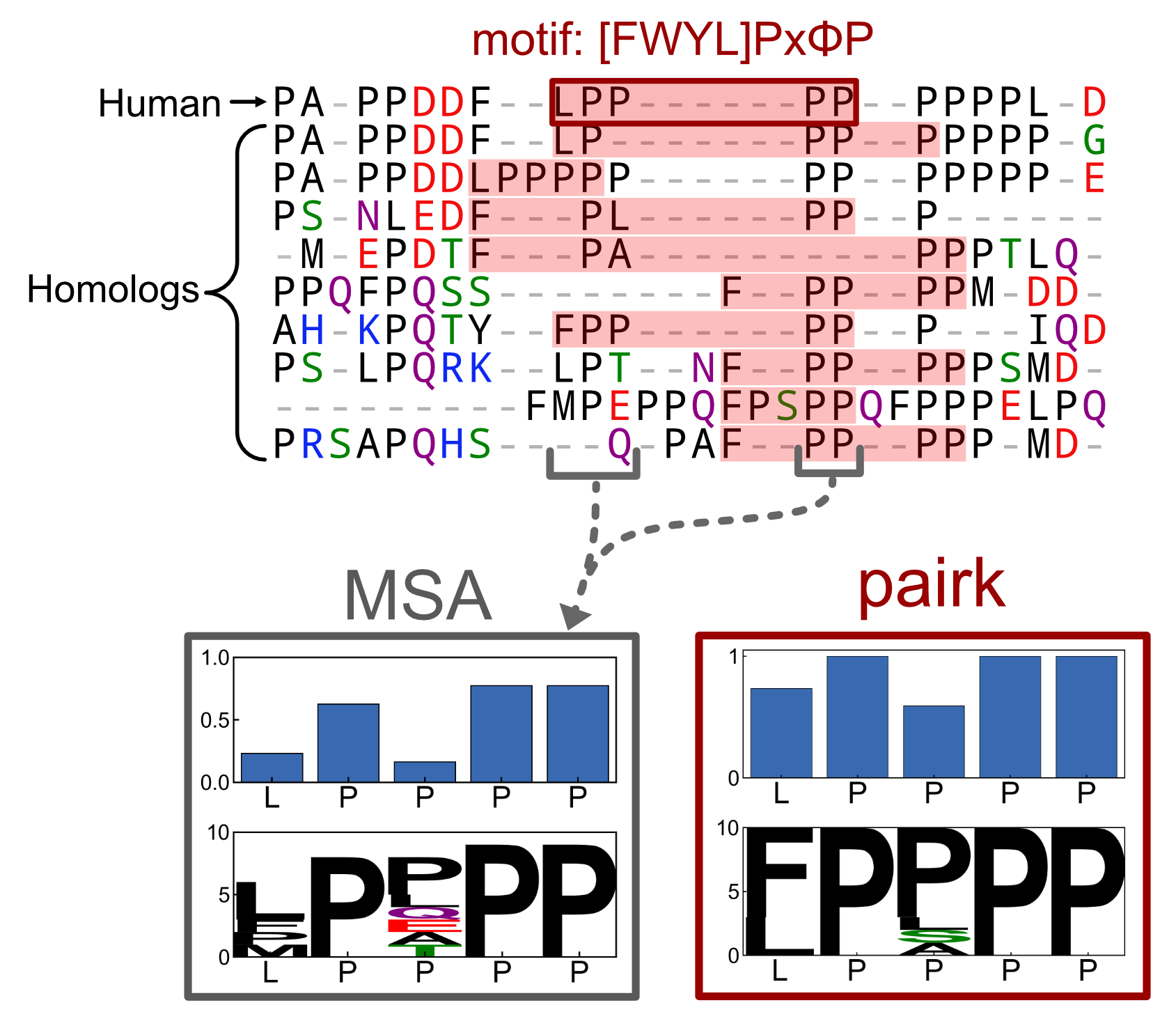

SLiM conservation from an MSA vs. pairk:

The pairk pipeline is composed of two main steps:

1: Pairwise k-mer alignment

For each k-mer in the query IDR, step 1 finds the best scoring length k fragment from each homolog IDR in a gapless and pairkwise manner. The position, sequence, and score of the best scoring fragments are stored in the results.

in informal pseudocode, the algorithm looks like this:

for each k-mer at each position in the query IDR:
    for each homologous IDR:
        for each k-mer at each position in the homologous IDR:
            score the alignment of the homolog k-mer - query k-mer match (with no gaps)
        store the score, position, and sequence of the best scoring homologous k-mer
    construct a "pseudo-MSA" composed of the query k-mer and the best scoring k-mers from each homologous IDR

2: k-mer conservation

For each k-mer “pseudo-MSA” from step 1, step 2 calculates the conservation of each position in the pseudo-MSA using a column-wise scoring function. The scores are then converted to z-scores to give the conservation relative to other residues in the query IDR. The z-score background distribution is all of the column-wise scores from all of the pseudo-MSAs.

for each k-mer in the query IDR:
    for each position in the pseudo-MSA:
        score the conservation of the position using a column-wise scoring function
Convert all scores for all k-mer pseudo-MSAs to z-scores

quickstart

Here’s a quick example to get you started:

import pairk

# Load example dataset
ex1 = pairk.example1

# Perform k-mer alignment
aln_results = pairk.pairk_alignment(idr_dict=ex1.idr_dict, query_id=ex1.query_id, k=5, matrix_name="EDSSMat50")

The resulting pseudo-MSAs are stored in the aln_results object (an instance of the pairk.PairkAln class). You can access the results from this object’s attributes directly (i.e. the pairk.PairkAln.orthokmer_matrix, pairk.PairkAln.position_matrix, and pairk.PairkAln.score_matrix DataFrames).

Let’s say that we are interested in the k-mer “LPPPP” which starts at position 75 in the query sequence. We can access the “pseudo-MSA” for this k-mer from the pairk.PairkConservation.orthokmer_matrix DataFrame or using the pairk.PairkConservation.get_pseudo_alignment() method:

In [4]: print(aln_results.get_pseudo_alignment(75))
['LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'PPMPP', 'LPPPP', 'LPDRP', 'APSPP', 'LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'LPPPP', 'IPPPP']

In [5]: print(aln_results.orthokmer_matrix.loc[4])
query_kmer          TVNAA
9793_0:005123       TGNAA
1706337_0:000fc7    TVNAA
51337_0:001b5a      TVNTA
9568_0:004ae1       TVNAA
43346_0:004190      TVNAV
885580_0:00488c     TVNTA
10181_0:00305d      TVSTA
1415580_0:000900    NVNAN
61221_0:00105a      AVSAG
7897_0:0033c5       TVSAS
8407_0:002bff       SQNVA
173247_0:004550     TPNQA
30732_0:0046dd      TVKAK
241271_0:0048e4     PVNSF
8103_0:0045e4       PLNAL
56723_0:00152f      TAAAA
210632_0:004c0c     TIKAK
31033_0:00264e      TIKAS
63155_0:004c86      TVKAK
7994_0:004d71       TSNTS
109280_0:00369f     TTAAA
150288_0:004e5a     NLNSQ
Name: 4, dtype: object

To calculate pairk conservation, an instance of the pairk.PairkAln object is used as input to the pairk.calculate_conservation() function.

# Calculate conservation
conservation_results = pairk.calculate_conservation(aln_results)

The conservation results are stored in conservation_results (an instance of the pairk.PairkConservation class). You can access the results from this object’s attributes (e.g. the pairk.PairkConservation.orthokmer_arr, pairk.PairkConservation.score_arr, and pairk.PairkConservation.z_score_arr arrays)

The pairk.PairkConservation object also contains some plotting functions. for example, pairk.PairkConservation.plot_conservation_mosaic():

# Plot conservation scores
conservation_results.plot_conservation_mosaic(position=75) # start position of the query k-mer of interest

The above example output of the pairk.PairkConservation.plot_conservation_mosaic() is annotated with explanation of each element of the plot

The pairk.PairkConservation also has methods to write the results to a file or read the results from a file:

# save the results
conservation_results.write_to_file('example1_results.npz')

# read the results
conservation_results = pairk.PairkConservation.read_results_from_file('example1_results.npz')

PairK’s main functions and classes

• step 1, pairwise k-mer alignment functions

  • pairk.pairk_alignment() - uses a scoring matrix to align the k-mers to each homolog

  • pairk.pairk_alignment_needleman() - uses a scoring matrix to align the k-mers to each homolog (use pairk.make_aligner to create the aligner object before using this function)

  • pairk.pairk_alignment_embedding_distance() - uses embeddings from ESM2 (or user provided embeddings) to align the k-mers to each homolog. To use ESM2, use pairk.ESM_Model() to load the model before using this function (provided as the mod argument)

  • pairk.PairkAln - pairkwise k-mer alignment results are returned as an instance of this class. See the associated methods for more details on how to interact with the results.

• step 2, k-mer conservation functions

  • pairk.calculate_conservation() - calculates the conservation of the k-mers from a pairk.PairkAln object

  • pairk.PairkConservation - conservation results are returned as an instance of this class. See the associated methods for more details on how to interact with the results.

• utility functions

  • pairk.print_available_matrices() - prints the available scoring matrices

  • pairk.FastaImporter - class to import fasta files and return the sequences in different formats

See our tutorial notebook for a notebook-based tutorial on how to use pairk.

See the API documentation for more details on the functions and classes in pairk.
